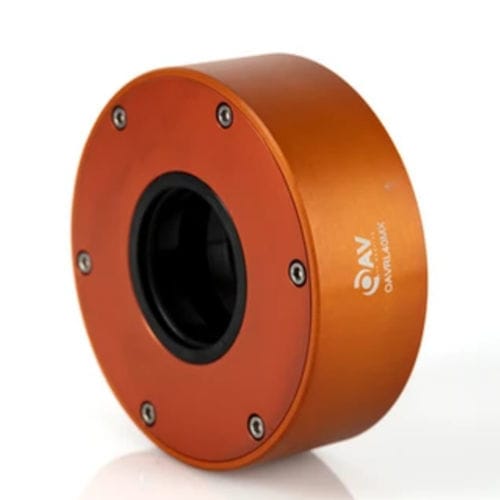

Radial bearing unit OAVRL40MXairrolleraluminum
Add to favorites
Compare this product
Characteristics
- Type
- radial, air
- Rolling element
- roller
- Material
- aluminum
- Inside diameter
40 mm
(1.57 in)- Outside diameter
100 mm
(3.94 in)
Description
Frictionless OAV ® X-Roller Air Bearing. Ultra precise rotary air bearing.
Input Pressure - 20 psi - 100 max psi
Porous Material - OAV Carbon Graphite
Pressure Port Threads - TBD
Radial Load Capacity - 40.1 lbs (178.4 N)
Thrust Load - 72.0 lbs (320.3 N)
Radial Stiffness - 68 N/μm (0.41 lbs/μin)
Total Indicated Runout (TIR) - ± 1 millionths in (.025 μ)
Bearing Width - 36 mm
Bearing Weight - 1.14 lb
Shaft Diameter - 40 mm + .01/.00
Housing Bore size Light Press Fit Method - 99.98 mm + .02/-.00
Flow rate - 21 SCFH
