Insulation spark gap 100 kA
Add to favorites
Compare this product
Characteristics
- Type
- insulation
Description

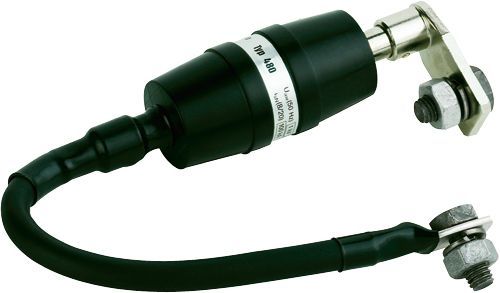

Explosion-proof, Parex closed spark gap
• Ex certificate to ATEX
• Labelling to EN 60079-0/-1: II 2G Ex d IIC T6 Gb
• Ex certificate to IECEx and DNV
• Labelling to EN 60079-0/-1: Ex d IIC T6 Gb
• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-3 (IEC 62561-3)
• Incl. connector cable 25 mm² Cu, highly flexible, with cable shoe, screw (M 10), nut
and lock washer
Application: In potentially explosive areas, indirect bridging of insulating flanges and insulating glands e.g. in cathodic, corrosion-protected (KKS) systems
