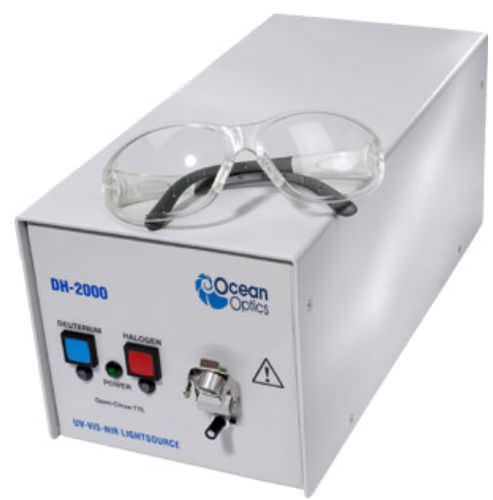

Halogen lamp light source DH-2000 series

deuterium lampUVNIR

The following sections provide instructions on unpacking and setting up your DH-2000 Light Source. Before using the DH-2000 for the first time, check for transport damage. Be sure to adhere to all warnings on the unit and in this manual. Procedure 1. Unpack your lamp assembly carefully. Although the lamp is rigidly mounted, dropping this instrument can cause permanent damage. 2. Inspect the outside of the instrument and make sure that there is no damage. Do not use the instrument if damage is present. Contact your dealer for repair or replacement information, if necessary. Contents Your DH-2000 package should contain the following:  DH-2000 High-Power Light Source  Power cord  UV safety goggles  One IC-DB15-2 interface cable for shutter operation  Quick Start Document The following table provides information on optimizing the operating environment of your DH2000. Moisture 5-95% without condensation at 40°C Ventilation Unit should be situated so that its location or position does not interfere with proper ventilation. Temperature 5°C – 35°C. Unit should be situated away from any device that emits excessive heat. Temperature 5°C – 35°C. Unit should be situated away from any device that emits excessive heat. Object and Liquid Entry Unit should be positioned so that objects do not fall on top of the unit. Additionally, ensure that no liquids are spilled into the enclosure through openings. Deuterium On/Off Press the blue DEUTERIUM button to turn the Deuterium lamp on or off. The bulb requires a warm-up time of 20 seconds before the Deuterium lamp is illuminated. You must allow the bulb to warm up to receive accurate data from the lamp.
