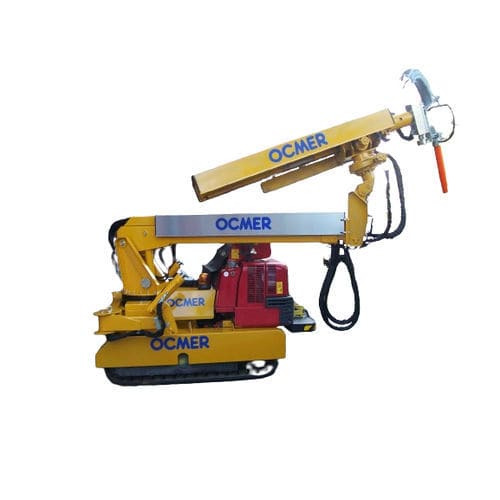

Concrete spraying machine osm 7200 rapido

The OCMER spraying arm type OSM-7200 RAPIDO has been specifically designed for use in small/medium sized tunnels. With the axial movement of the head in a horizontal position it is possible to operate in tunnels with sections from 4 to 12 meters and heights from 5 to 8 metres, keeping the spraying pistol perpendicular to the surface to be covered in a simple and intuitive way. The entire structure of the arm and its head are completely protected by robust sheet steel guards. The movements, all regulated by proportional distributors, allow precise and fast positioning of the arm by acting on the three joysticks of the dedicated radio control. Oscillating movement at the head excludible with on/off control. Finally, the OSM-7200 RAPIDO arm can be supplied either in a free standing version or already mounted on a duly stabilized wagon. Main features Designed for small to medium sized galleries Precise and fast It operates in tunnels with sections from 4 to 12 meters and heights from 5 to 8 meters Intuitive use Technical data Weight 900 kg Installed power: KW=11, 3x400 V 50 Hz (other voltages on request) Electric control panel: EEC NORMS (EN-60204-1; EN-60439-1; 73/23/EEC; 93/68/EEC); Degree of protection: IP 55
