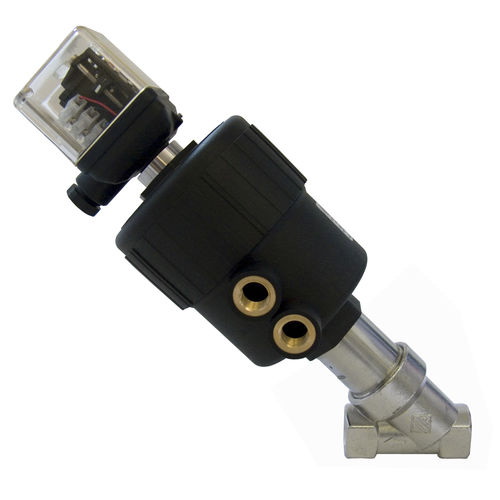

Piston valve 21IA-IP1 Seriespneumatically-operatedregulatingfor hot water
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- pneumatically-operated
- Function
- regulating
- Media
- for hot water
- Body
- angle seat
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 16 bar
(232.1 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -10 °C
(14 °F)- Flow rate
Max.: 620 l/min
(163.79 us gal/min)Min.: 80 l/min
(21.13 us gal/min)
Description
The actuator features anti water hammer that allows fluid to pass below the seat and an optical position indicator. Its body is made of stainless steel and its corrosion resistant. The rotation is possible up to 360 degrees, and it has self adjusting internal seals to enhance its service life. It is also a double acting actuator which allows conversion from N.C. to N.O. and any mounting orientation is possible.
Catalogs
No catalogs are available for this product.
See all of ODE‘s catalogs
