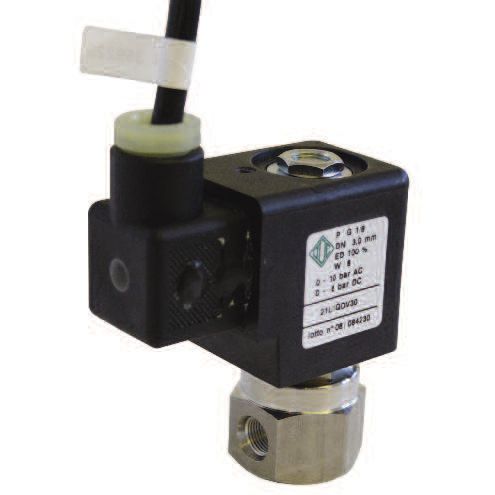

Direct-operated solenoid valve 21L Ex m Series2-wayNCoil
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- oil, fuel oil
- Other characteristics
- explosion-proof
- DN
Min.: 2.5 mm
(0.098 in)Max.: 5.5 mm
(0.217 in)- Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)- Pressure
40 bar
(580.2 psi)
Description
Functioning: 2/2 way direct acting, N.C.
Body material: Stainless Steel AISI 316 series
Port connection: G 1/8, G 1/4, 1/4 NPT
Type: Explosion Proof Solenoid Valves ATEX
Flow Kv (l/min): 3,2, 4, 5, 9
Applications: Air, Chemical, Industrial automation, Medical, Water, Water treatment, Chemical/Petrochemical
Certifications: Atex
