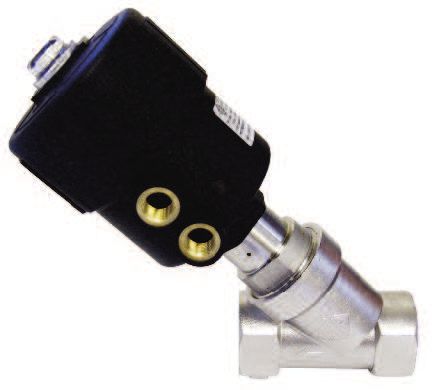

Pneumatically-operated valve 21IA-HA seriesfor hot waterangle seat2/2-way
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatically-operated
- Media
- for hot water
- Body
- angle seat
- Number of channels
- 2/2-way
- Other characteristics
- ATEX
- DN
Min.: 15 mm
(0.591 in)Max.: 50 mm
(1.969 in)- Pressure
Min.: 16 bar
(232.1 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 180 °C
(356 °F)- Flow rate
Min.: 80 l/min
(21.13 us gal/min)Max.: 620 l/min
(163.79 us gal/min)
Description
Type: Angle seat valves
Functioning: 2/2 way pneumatically operated, Normally closed
Body material: Stainless Steel AISI 316 series
Port connection: G 1/2, G 3/4, G 1, G 1 1/4, G 1 1/2, G 2, 1/2 NPT, 3/4 NPT, 1 NPT, 1 1/4 NPT, 1 1/2 NPT, 2 NPT
Flow Kv (l/min): 80, 150, 190, 340, 430, 620
Applications: Industrial automation, Steam, Water
Certifications: Atex, CE
Catalogs
No catalogs are available for this product.
See all of ODE‘s catalogs
