Analog I/O module CT-3804
Modbus TCPEthernetModbus RTU

Analog I/O module - CT-3804 - ODOT Automation - Modbus TCP / Ethernet / Modbus RTU
Analog I/O module - CT-3804 - ODOT Automation - Modbus TCP / Ethernet / Modbus RTU
Analog I/O module - CT-3804 - ODOT Automation - Modbus TCP / Ethernet / Modbus RTU - image - 2
Analog I/O module - CT-3804 - ODOT Automation - Modbus TCP / Ethernet / Modbus RTU - image - 3
Analog I/O module - CT-3804 - ODOT Automation - Modbus TCP / Ethernet / Modbus RTU - image - 4
Add to favorites
Compare this product


Characteristics

Signal type
analog
Bus
Modbus TCP, Ethernet, Modbus RTU, serial, Modbus, CC-Link, CANopen, ProfiNet, EtherCAT, PROFIBUS, PROFIBUS-DP, DeviceNet
Number of inputs/outputs
4 analog inputs, 16-channel
Type
remote, network, safety
Applications
voltage, for sensors, automation, PLC, temperature, current, for lighting control, for temperature sensors, for HMI interface, for the food industry, centralized automation, for thermocouples
Mounting
DIN rail
Size
mini
Other characteristics
compact, configurable, rugged, IP

Description

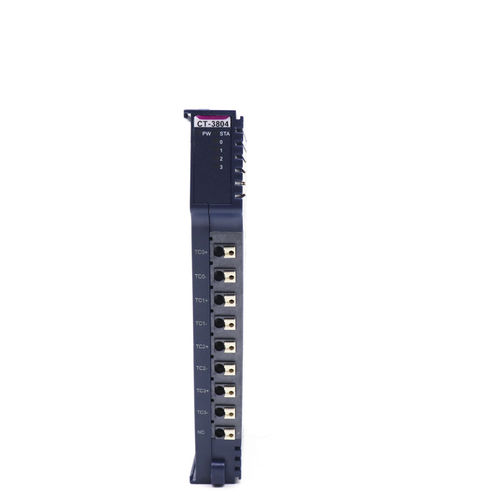

CT-3804: 4 channels Analog Input,Thermocouple( J type、 K type、 E type、 T type、 Stype、 R type、 B type、 N type、 C type) Module features ◆ The module supports 4-channel thermocouple signal acquisition ◆ The module carries with 4 analog indicators ◆ The module supports 9 kinds of conventional thermocouple temperature measurement type ◆ The internal bus of the module and field input adopts magnetic isolation ◆ The module input channel supports TVS overvoltage protection ◆ 24-bit ADC resolution (Σ-δ type) Technical Parameters General parameters Power: Max.50mA@5.0Vdc Isolation: I/O to internal bus: magnetic isolation (2.5KVrms) Field Power:Not used Wiring:I/O Wiring:Max.1.5mm²(AWG 16) Mounting Type: 35mmDIN-Rail Size:115*14*75mm Weight:65g Environment Specification Operational Temperature:-40~85℃ Operational Humidity:5%~95% RH(No Condensation) Protection Class:IP20 Input Parameter Channel Number:4 Channels LED Indicator:4 Input LED Indicators Sensor Type:J / K/ E / T / S / R / B / N / C type thermocouples Acquisition Accuracy: ±0.3% Full Scale,@25℃ ±0.5% Full Scale,@-40~85℃ Single Channel Sampling Rate: 50Hz (Max.) Measuring Range ℃ - J Type - -210~1200℃ - K Type - -270~1370℃ - E Type - -270~1000℃ - T Type - -270~400℃ - S Type - -50~1760℃ - R Type - -50~1760℃ - B Type - 0~1820℃ - N Type - -270~1300℃ - C Type - 0~2320℃ Data Format - 16-Bit Signed Integer (Integer)
