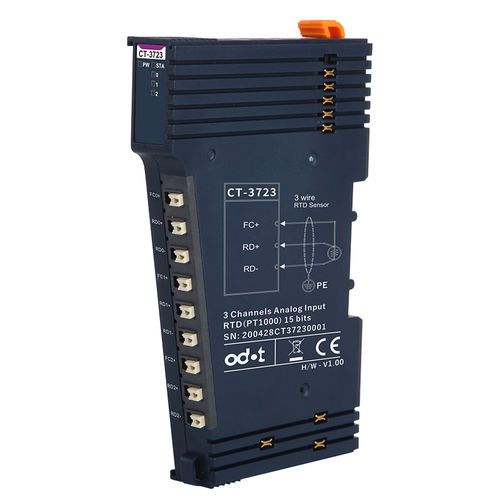

Module features
◆ The module supports 3-channel RTD thermal resistance (PT1000) temperature acquisition
◆ The module could be connected to a 2-wire or 3-wire PT1000 temperature sensor
◆ The internal bus of the module and field input adopts magnetic isolation
◆ The module carries with 3 analog input channel LED indicator
◆ 15-bits ADC resolution
General parameters
Power: - Max.35mA@5.0Vdc
Isolation: - I/O to internal bus: magnetic isolation (2.5KVrms)
Field Power: - Not used
Wiring: - Max.1.0mm² (AWG 17)
Mounting Type: - 35mmDIN-Rail
Size: - 115*14*75mm
Weight: - 65g
Environment Specification
Operational Temperature: - -40~85℃
Operational Humidity: - 5%~95% RH(No Condensation)
Protection Class: - IP20
Input Parameter
M/S/F:Channel Number: - 3 Channels
LED Indicator: - 3 Green LED
M/S:Resolution: - 15 bits
M/S:Sensor Type: - PT1000
Measurement Range: - -240~880℃
Measurement Accuracy: - 0.5℃
Conversion Rate: 400ms/3 channels
