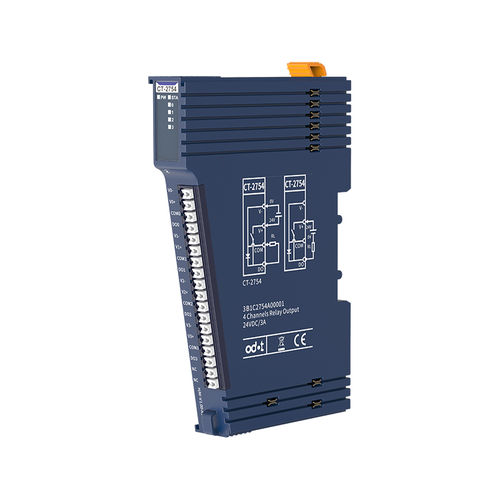

Digital output module CT-2754
CANopenModbusPROFIBUS

digital output module
digital output module
Add to favorites
Compare this product


Characteristics

Signal type
digital
Bus
EtherNet/IP, Modbus RTU, Modbus TCP, RJ45, Modbus, CANopen, EtherCAT, PROFIBUS-DP, ProfiNet, RS-485, CC-Link, PROFIBUS, RS485
Number of inputs/outputs
4 digital outputs
Type
remote, network
Applications
automation, voltage, current, PLC, for lighting control, for proportional valve, for sensors, for hazardous locations
Mounting
DIN rail
Other characteristics
IP20

Description

CT-2754 4 channels relay output,3A/30VDC/90W 1Module features ◆ 4-channels relay normally on output ◆ 4 LED channel indicators ◆ Low on resistance (≤100mΩ) ◆ With isolation between channels ◆ Built-in unidirectional (freewheel diode) FWD, built-in RC circuit ◆ Resistive and inductive loads can be connected General Parameters Power Consumption - Max.150mA@5.0VDC Isolation - I/O to internal bus isolation voltage: AC 500V Isolation voltage between channels AC 500V Field Power - Not used Wiring - Max.: AWG 18 Min.: AWG 24 Installation - 35mm DIN-Rail Size - 115*14*75mm Weight - 65g Vibration Resistance - Comply with IEC 61131-2 and EC 60068-2-6 Impact resistance - Comply with IEC 61131-2 and IEC 60068-2-27 EMC Performance - Comply with IEC 61131-2 and IEC 61000-4 Environment Specification Operating Temperature of Horizontal Installation - -35℃~70℃ Operating Temperature of Vertical Installation - -35℃~60℃ Relative Humidity - < 95%RH (No Condensation) Storage Temperature - -40℃~85℃ Storage Humidity - < 95%RH (No Condensation) Manufacturing Test Temperature - -40℃~75℃ Ingress Protection Rating - IP20 Output Parameter Channel Number - 4 channel Relay normally on output LED Indicator - 4 channel output LED Indicator Max. Switching Current - Resistive load:3A Inductive load:2A Max. Switching Voltage - 30VDC Max. Switching Power - 90W Switching Frequency - Resistive load:Max 2Hz Inductive load:Max 0.5Hz Contact Resistance - ≤100mΩ Output Delay - ON to OFF:Max.10ms OFF to ON:Max.10ms Mechanical Endurance - 2x107 Electricity Endurance - 1x105 Vibration - 10Hz~55Hz 1.5mm Double vibration amplitude Impact - Stability:98m/s2 Strength:980m/s2
