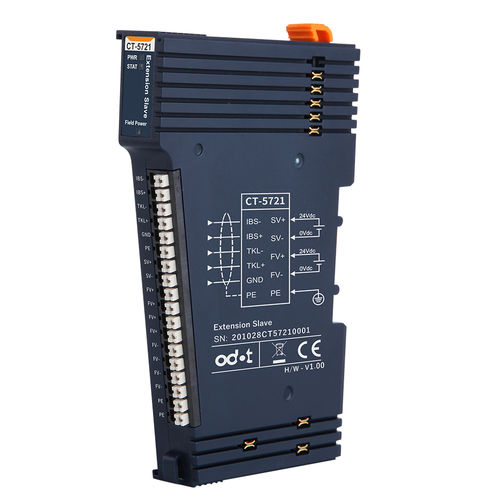

DIN rail IO module CT-5721
compactmodularIP20

DIN rail IO module
DIN rail IO module
DIN rail IO module
DIN rail IO module
DIN rail IO module
Add to favorites
Compare this product


Characteristics

Mounting
DIN rail
Other characteristics
IP20, compact, modular

Description

CT-5721 Bus extended slave module 1 Module Description The bus extended slave module is used to extend the bus. The bus extended slave module has no process data and configuration parameters. 2 Technical Parameters General Parameters Power - Max.20mA@5.0Vdc Mounting Type - 35mmDIN-Rail Size - 115*14*75mm Weight - 65g System Power - Nominal: 24Vdc, Range: 20-30Vdc Current:Max.2A@24VDC Protection: Overcurrent Protection, Reverse Protection: YES Internal BUS Supply Current - Max. 2.5A@5VDC Isolation - System Power to Field Power Isolation Field Power Supply - Power Supply:20.4~28.8V(Nominal 24VDC) Protection: Reverse Protection: YES Field Power Supply Current - Max. DC 8A Environment Specification Operating Temperature of Horizontal Installation - -35℃~70℃ Operating Temperature of Vertical Installation - -35℃~60℃ Relative Humidity - < 95%RH (No Condensation) Storage Temperature - -40℃~85℃ Storage Humidity - < 95%RH (No Condensation) Manufacturing Test Temperature - -40℃~75℃ Ingress Protection Rating - IP20 Bus parameter Bus Extension Spacing - No more than 8 meters Number of Expansion Stations - No more than 5 stations
