Measurement software MTF-Explorer

qualityimagingWindows

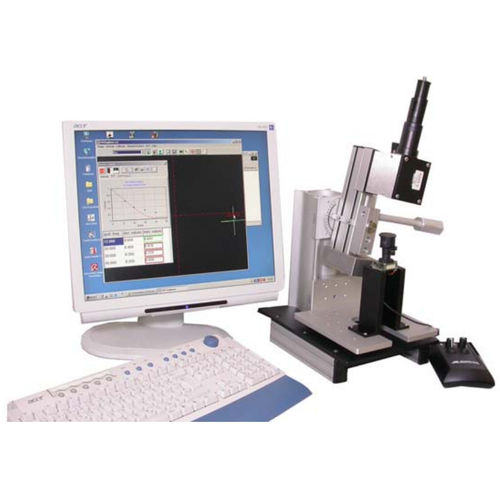

Software for measurement of modulation transfer function (MTF), LSF and ESF. The live MTF measurement offers numerous fields of use. One example is shown on the left: adjustment of CCD-Chips in a sensor head according best MTF. MTF Explorer is suitable for upgrading existing equipment or setting up new, price effective solutions MTF-Explorer is an image evaluation software for the measurement of the modulation transfer function (MTF), Line spread function (LSF) and Edge spread function (ESF). It consists of a Windows software with interfaces to different image sources. These are Frame Grabbers for standard analogue video signal, WDM-Interface for digital cameras. Additionally it works with any saved picture in the BMP- and JPG-format up to 16 Megapixels. MTF-Explorer: The universal solution MTF-Explorer is the entrance to cheep and easy MTF measurement. Equal, if the image acquisition is made conventional by microscope and analogue-CCD-camera or by a digital camera with fixed objective: MTF explorer can be used for nearly any application. After the very easy calibration is done, the MTF can be directly measured! Additionally MTF-Explorer features the characterization of imaging quality of digital cameras. By help of image evaluation with MTF-Explorer not only the imaging quality of the optics can be measured. Also the influence of the CCD-Chip end the camera electronics can be determined.
