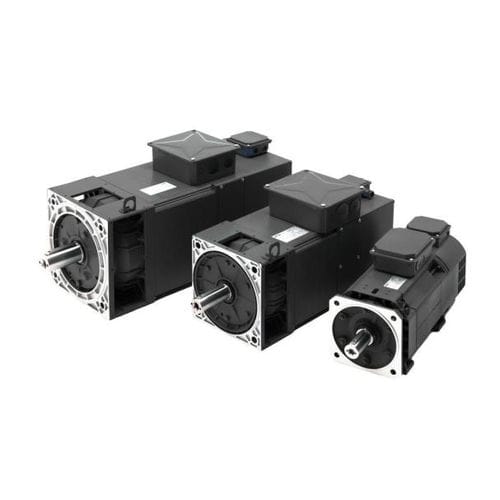

3-phase motor QSR SeriessynchronousIP55IP54
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- synchronous
- Protection class
- IP55, IP54, IP23
- Configuration
- variable reluctance, compact
- Efficiency classes
- IE4
- Applications
- traction
- Power
Max.: 500 kW
(679.811 hp)Min.: 0.3 kW
(0.408 hp)- Torque
Max.: 2,500 Nm
(1,843.9054 ft.lb)Min.: 5 Nm
(3.6878 ft.lb)- Rotational speed
Max.: 2,600 rpm
(16,336.28 rad.min-1)Min.: 580 rpm
(3,644.25 rad.min-1)- Diameter
Max.: 280 mm
(11.02 in)Min.: 80 mm
(3.15 in)
Description
General information:
The synchronous motors of the QSR SincroSPE® series offer the best performance and the latest innovative technology, thanks to many years of experience in the variable speed electric motors powered by inverter.
These motors have a very high efficiency in all the speed range and a considerable performance despite the compact design and dimensions.
Advantages of the QSR SincroSPE® motors:
▪ Extremely high efficiency
▪ High power/torque density
▪ Modern design
▪ High dynamic response
▪ Very compact dimensions
▪ Wide range of options available
Sectors of use:
The main sectors of use for this series of motors are:
▪ Mechanical and metalworking
▪ Plastic industry
▪ Textiles
▪ Iron and steel
▪ Traction and propulsion
▪ Energy production
Typical fields of use:
▪ Plastic, rubber and foodstuffs extruders
▪ Injection moulding machines
▪ Metal wire working
▪ Working and cutting metal sheets
▪ Electrical wire machines
▪ Variable speed hydraulic pumps
▪ Paper and cardboard production lines
▪ Machines for tissue and fibers processing
▪ Printing machines
▪ Electrical/hybrid vehicles and boats
▪ Systems for testing motors and transmissions
Catalogs
7.3.2 – QSR
12 Pages
General Catalogue
185 Pages
