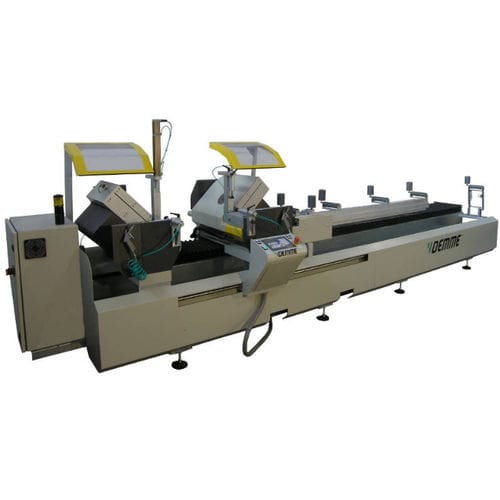

Circular sawing machine DH AP series

profiledouble-miterwith tilting blade

Double head sawing machine with frontal blade feed, blades Ø500 mm, pneumatic head tilting with mechanical stops at 90° and 45° external and movable head positioning directly controlled by CN - No. 2 three-phase motors 2,2 Kw - 400V - 50Hz - 2800 rpm - Max cutting length: 4000 mm (increasable with optional software) - Min cutting length: 280 mm (with tilted heads at 45°) 250 mm (with tilted heads at 90°) - Blade holder spindle diameter: 32 mm - Operating p'essure: 7 bar - Pneumatic head tilting with mechanical stops at 90° and 45° external - Head tilting with check of min distance between heads - Movable head positioning driven by brushless motor with sensor on magnetic strip and pneumatic locking device in cutting position - Movable head positioning with check of min. distance between heads - Hydro-pneu matic blade feed - Blade speedadjustment - Spray lubrication with variable flow - Vice locking device with different pressure and power-assisted valves - Overall dimensions: 7600 mm (a) x 1600 mm (b) x 1500 mm (c) - Weight: 1850 Kg • Widia blades • Pair of horizontal pneumatic vices • Pair of vertical pneumatic vices • Filter group reducer with N° 2 air guns • Roller conveyor for profile support L=2000 mm • Chute for chips collection • Arrangement for connection to the vacuum cleaner • Installation, operation and maintenance manual • Service spanners
