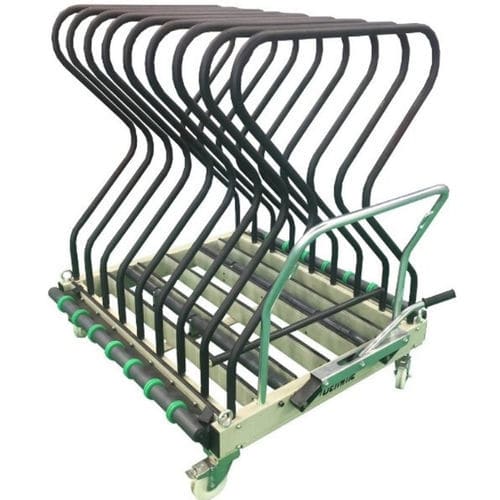

Transport trolley HE series

tool-holderindustrial

Bars holder trolley • Surfaces of contact covered with anti-scratch rubber • N° 4 freely-rotating wheels equipped with brake • Max carrying capacity: 300 kg • Overall dimensions: 4400 mm (a) x 835 mm (b) x 935 mm (c) • Weight: 58 kg Profiles holder trolley • Surfaces of contact covered with anti-scratch rubber • Adjustable side safety guards • By choice anti-fall equipment • N° 2 fixed wheels and n° 2 freely-rotating wheels equipped with brake • Handles for trolley moving • Carrying profile length: min. 250 mm - max. 3300 mm • Max carrying capacity: 200 kg • Overall dimensions: 2350 - 3950 mm (a) x 800 mm (b) x 1590 mm (c) • Weight: 111 kg Frames holder trolley • Surfaces of contact covered with anti-scratch rubber • N° 10 adjustable compartments 105 mm wide • Base with polizene strips to make the fittings handling easier • Handles for trolley moving N° 2 fixed wheels and n° 2 freely-rota-tingwheels equippedwith brake • Max carrying capacity: 515 kg • Overall dimensions: 1145 mm (a) x 1000 mm (b) x 1195 mm (c) • Weight: 88 kg Fittings holder trolley • Surfaces of contact covered with anti-scratch rubber N° 5 compartments 200 mm wide Base with rollers to make the fittings handling easier • N° 4 freely-rotating wheels, of which equipped with brake Handles for trolley moving Height adjustable System for fitting containment • Max carrying capacity: 1000 kg/m2 • Overall dimensions: 1200 mm (a) x 1650 mm (b) x 2165 - 3180 mm (c) • Weight: 188 kg
