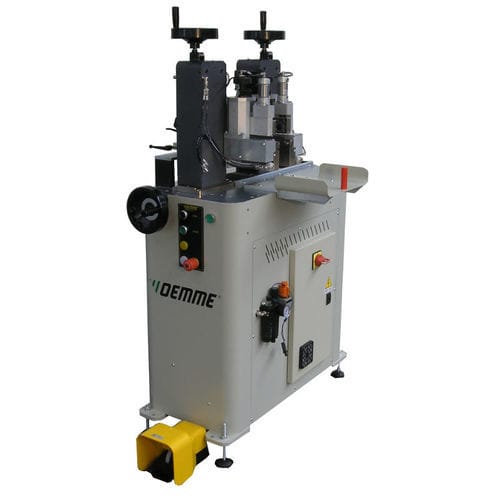

Inserting machine AS 242 I

Thermal break plastic bar inserting device Machine for insertion of plastic strips into the grooves of aluminum profiles. Dragging system equipped with nr. 4 motorized rotors to prevent strips stacking while inserting. Technical details • N°2 motors 0,75 KW— 400 V- 50 Hz • Operating pressure: 7 bar • Bar feed speed: 100 m/min • Bar guide stroke: transversal 7 — 256 mm/vertical — 140 mm • Working capacity (bar height): min 10 mm — max 60 mm • Automatic expulsion of strips end • Button for strips partial insertion into the lower shell • Transversal bar guide adjustment by means of a single control device equipped with a decimal positioner • Vertical bar guide adjustment by means of two independent control devices equipped with a decimal positioner • Bar stop by choice through push-button control • Machine overall dimensions: 1020 mm (a) x 825 mm (b) x 1400 mm (c) • Machine weight: 235 Kg Standard equipment • Pair of standard double rotors for bar feed • Pair of standard heads for bar guide • Stop for strips lining up at the end of the bar • Installation, operation and maintenance manual • Service spanners
