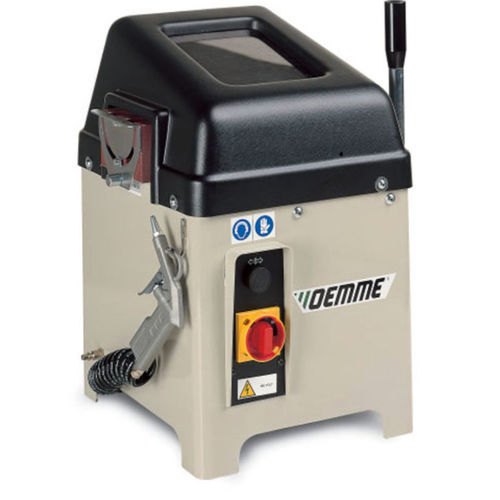

PVC end milling machine EM 140 G

automaticvariable-anglefor PVC profiles

Horizontal milling machine with manual feed, designed to perform the necessary milling to assemble the rounded glazing beads, cut both at 45° and at 90° Horizontal milling machine with manual feed, designed to perform the necessary milling to assemble the rounded glass-stops, cut both at 45° and at 90° Milling and counter template unit according to the performed series Pneumatic vice to clamp the glass stop while working Technical details • Three-phase motor 0,5 Kw - 400V - • 2800 rpm • Working stroke: 140 mm • Operating pressure: 6 - 7 bar • Max cutter diameter: 100 mm • 50Hz • Cutter holder shaft diameter: 16 mm • Overall dimensions: 360 mm (a) x 380 mm (b) x 510 mm (c) • Weight: 24 Kg Standard equipment • 1 customized milling unit • 1 customized counter template • Pneumatic vice • Pair of adjustable profile stops • Air gun • Aerosol spray lubrication can • Installation, operation and maintenance manual • Service spanners
