Wire cutting machine
for foamfor EPSfor foam panels

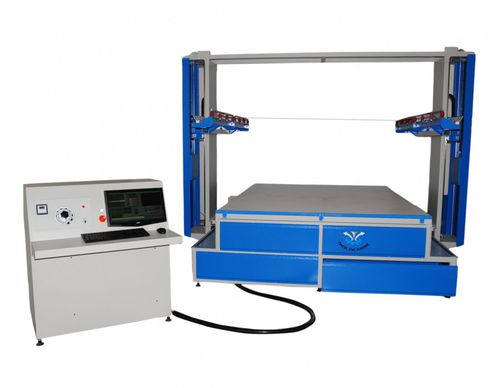

Wire cutting machine - Öncel Cnc Makine - for foam / for EPS / for foam panels

Wire cutting machine - Öncel Cnc Makine - for foam / for EPS / for foam panels - image - 2

Wire cutting machine - Öncel Cnc Makine - for foam / for EPS / for foam panels - image - 3

Wire cutting machine - Öncel Cnc Makine - for foam / for EPS / for foam panels - image - 4

Wire cutting machine - Öncel Cnc Makine - for foam / for EPS / for foam panels - image - 5

Wire cutting machine - Öncel Cnc Makine - for foam / for EPS / for foam panels - image - 6

Add to favorites

Compare this product

Characteristics

Technology

wire

Material

for foam, for EPS

Product handled

for foam panels

Control type

CNC

Applications

for industrial applications

Other characteristics

automatic, linear

X travel

2,100 mm
(82.68 in)

Y travel

1,450 mm
(57.09 in)

Laser power

Min.: 1,000 W

Max.: 5,000 W

Description

CNC STYROFOAM CUTTING MACHINE is used in the production of products such as jambs, panels, crown, floor pile, appliqué keystone which are used for insulation and decoration in external facades. MACHINE DIMENSIONS : 3700 x 3250 x 2500 mm CONTROL PANEL : 1000 x 800 x 1100 mm TABLE DIMENSIONS : X=3700 mm Y=2000 mm MACHINE CUTTING CAPACITY : 2 blocks in vertical cabling, 4 blocks in horizontal cabling APPLICABLE WIRE NUMBER : 26 pieces 0,30 mm wire connection capacity MAXIMUM CUTTING MEASUREMENTS : X=2100 mm Y=1450 mm RESISTANCE HEIGHT : 1200 mm RESISTANCE HORIZONTAL LENGTH : 2400 mm ENERGY CONSUMPTION OF MACHINE: MIN 1 KW - MAX 5 KW X AXIS MOTOR POWER AND QUANTİTY : 2 X 4.5 NM motor Y AXIS MOTOR POWER AND NUMBER : 2 X 4.5 NM motor MACHINERY CONTROL PROGRAM : Mach 3 G-CODE PROGRAM : Lazy cam MACHINE DRIVING SYSTEM : Linear rail and rack gear MACHINE WEIGHT : 350 KG
