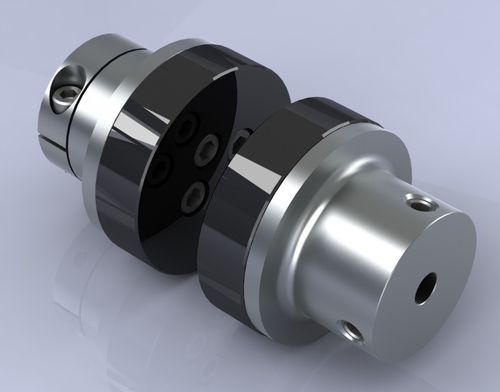

Magnetic coupling MXC series

Advantages: Can be used to couple across a thin barrier, making a perfectly hermetically sealed rotary feed-through No contact, so no wear Serves as a wear-free slip clutch – under overload, the magnetic coupling simply slips to the next position. In the MXC OEP magnetic couplings, this slip is exactly 90 degrees. Disavantages: Moderate radial loads on support bearings, proportional to misalignment Substantial axial load on bearings from magnetic attraction; inversely proportional to separation between the two hubs, and therefore directly proportional to the static break torque Useful only for very light torques, and applications with either gradual starts, or very low rotational inertia of the driven side of the system Relatively large in diameter, considering light coupling torque Typical Applications: Applications requiring hermetically sealed rotary feed-through, including specialized pumps moving caustic or hazardous material; semiconductor fabrication equipment; laboratory apparatus.
