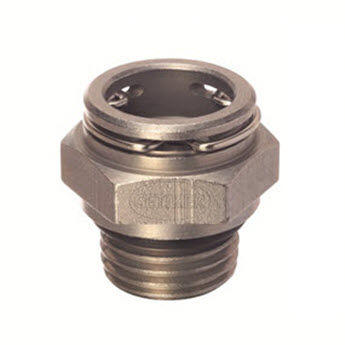

Pneumatic connector 201

DINhexagonalstainless steel

ZnNi coated steel: increased corrosion resistance High strength material: for high tensile and torque forces One piece machined body: compact space and lightweight Controlled axial clearance: prevents micro leakage Minimum pressure drop: ensures optimum flow Robust retainer mechanism: low insertion force External ISO seal: leak prevention at thread interface Optional external bonded seal: designed to replace other connections using metallic washers in high pressure and temperature applications Internal seal: leak prevention at tube interface Material Body: SAE 1215 Carbon Steel (UNS G12150, DIN W. Nr. 1.0736), ZnNi coating Retainer: SAE Stainless Steel 302 (UNS S30400) Internal/External Seal Options Oetiker Quick Connectors (QC) are an innovative connecting solution for pressure lines carrying media. They enable significant savings in assembly time, space required, assembly costs to be made, reduced warranties, and reduced injuries due to repetitive motion. Thanks to tool-free assembly, Oetiker QC’s are an optimal solution for many applications and are particularly suitable as a connecting element for oil and / or coolant and heating lines to turbochargers, engines, and transmissions.
