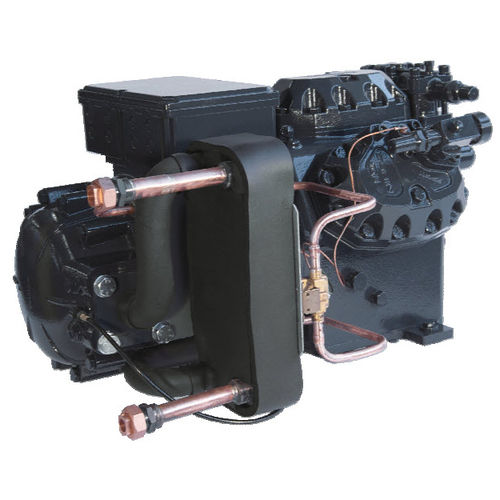

Semi-hermetic refrigeration compressor 2S-H6 seriespistonR404AR507
Add to favorites
Compare this product
Characteristics
- Configuration
- semi-hermetic
- Technology
- piston
- Refrigerant
- R404A, R507
- Other characteristics
- two-stage
Description
No. cylinders LP4
No. cylinders HP2
Displacement LP @ 50Hz75,83[m³/h]
Displacement HP @ 50 Hz37,91[m³/h]
Displacement LP @ 60 Hz91,00[m³/h]
Displacement HP @ 60 Hz45,49[m³/h]
Volume ratio LP / HP2,00
Suction valve42 s.[mm]
Discharge valve35 s.[mm]
Oil charge3,5[kg]
Net weight228[kg]
