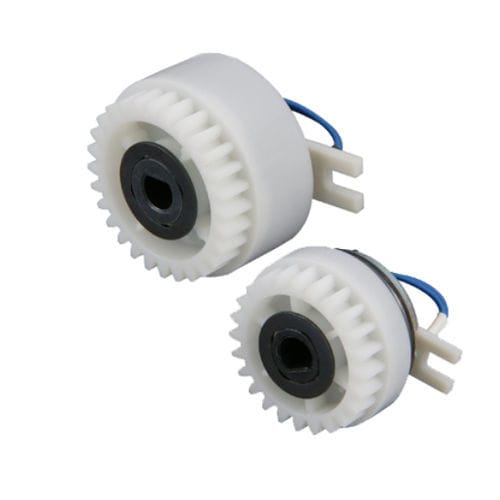

Electromagnetic clutch MIC series

discspringbi-directional

Small clutches for use in copy machines, printers, and other peripheral devices. This one-piece assembly features a custom-molded gear or timing pulley designed to your specifications. Most clutches use a permanent magnet to disengage the armature when it is not in use. All clutches are bi-directional. A three pronged dog bone output is also available. CUSTOM MOLDED GEAR The MIC assembly includes a custom-molded gear or timing pulley designed to your specifications. ONE PIECE ASSEMBLY The entire assembly is delivered pre-assembled, so it simply slides onto the shaft. There are no adjustments to make or gaps to set. BI-DIRECTIONAL OPERATION The clutch has the ability to drive clockwise or counterclockwise. PERMANENT MAGNET RETURN All standard units come with a permanent magnet armature return attached to the inside of the gear. This provides a fast and smooth disengagement of the armature when power is released to the clutch coil. ZERO BACKLASH If needed the armature can incorporate a one-piece spring that eliminates backlash. LONG LIFE Special bushings allow for millions of operating cycles for most applications. D-CUT BORE The bore of the clutch is made to fit a D-cut shaft to simplify installation and eliminate the need for set screws. TWO CLUTCH POWER CONNECTION OPTIONS AVAILABLE MIC clutches can come complete with a lead wire and a customer's specified terminal or the standard connector built into the clutch coil housing.
