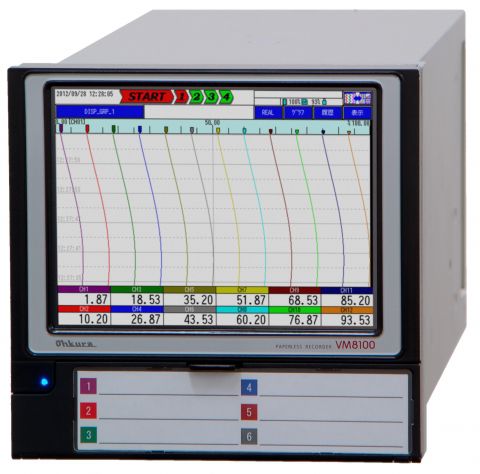

Paperless recorder VM8100A

with touchscreen

The VM8100A is a paperless recorder that employs a 5.7-inch TFT liquid crystal display. It uses CompactFlash (referred to as "CF cards" hereafter) for its recording media, and is also equipped with network functions as standard. Its input types can include thermocouples, resistance temperature detectors, and DC voltage (current), which can be set as desired in up to 12 channels. Aside from input, calculation processes can be performed in up to 48 channels. Data currently being recorded and data stored on CF cards can be viewed on the display. They can also be viewed on a PC using the included viewer software. Features ■Achievement of high-speed multi-point capture By providing independent measurement circuits in each channel, high-speed sampling can be performed at all points in up to 12 channels. ■Simple control using a touch panel Intuitive touch panel control allows the unit to be used easily. ■Equipped with large-capacity built-in memory Equipped with large-capacity built-in memory that is roughly 450 MB in size. Long-term recording can be performed using only the main unit.
