Digital temperature controller EC5900R

graphicPIDindustrial

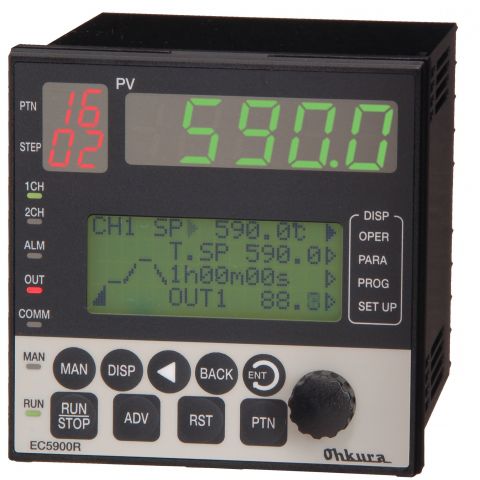

Model EC5900R are digital programmer/controller offering flexible control by storing programs of 400 steps (maximum 100 steps per pattern) and maximum 19 patterns. Sufficient comments displayed in the display of 16 character × 4-line at the center of unit allows easy-to-operate and highly functions. The graphic indication of a program pattern makes you keep directly tracking the progress of a process. Features ■Human friendly display and operability ● LCD (wide temperature range product) display of 16-character and 4-line ●Graphic display of program pattern ● Superb operability by comments display ● Simultaneous display of process variable, set point, residual time and other related data ■ It is lineup about one channel type and two channel types 1 channel-type basic model : EC5900R 2 channel-type basic model : EC5950R ■ The program function of fullness ● The mass program of a maximum of 400 steps and 19patterns ● DO : A maximum of 15 points, DI : A maximum of 12 points
