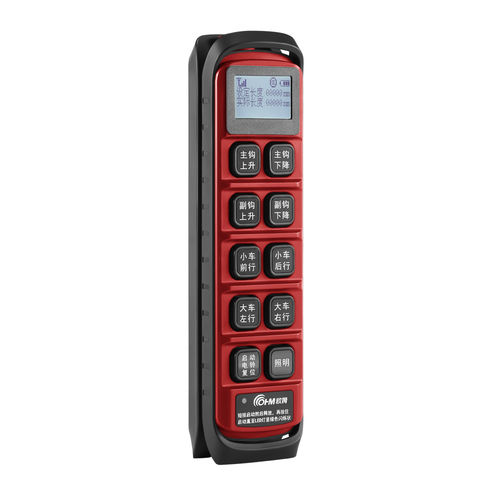

Control radio transmitter B16FK

for crane

Ergonomic design; Push-Button patent technology, comfortable feel, and clear step; Life cycle for push buttons: above 2,000,000 times; High-speed CPU, response time≦20ms; Secondary packing adhesive technology ensures shatter and falling-down resistance; Automatically shutdown when being impacted and three-level safety guarantee; Smart key for perfect replacement of spare system; Special holder for transmitter for easy management. Radio ： Frequency range：400-470MHz Transmission rate: 9600bit/s Transmitted power: ≤10mW Frequency tolerance: 4ppm Adjacent channel rejection: ＞50dB Modulation: GFSK(Gauss frequency shift key) Channel spacing: 25KHz Receiving sensitivity: －115dBm Check mode: CRC-1TM (cyclic redundancy) + Hamming code (≥4) Response time: ≤20ms Physical Data： Transmitter weight:400g(without battery) Transmitter size: 255mm x 62mm x 50mm (length x width x height) Transmitter shell material: high-strength engineering plastics Receiver weight: 2kg Receiver overall dimensions: 298mm x 206mm x 75mm(length x width x height) Receiver installation dimensions: 184mm x 88mm Receiver installation hole diameter: Φ6mm Receiver housing material: high-strength engineering plastics Operating temperature: －25℃-+70℃ Operating humidity range: 0-97%RH Safety Standard： EN ISO 945-1 Category 3 EN ISO EN ISO 13849 Class D Radio Transmission Equipment Type Approval Certificate (State Radio Regulatory Commission of the People’s Republic of China) Crane remote control device safety qualification certificate (Liao'an Institute)
