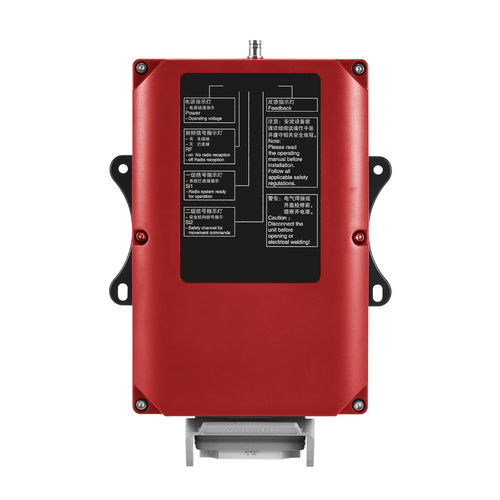

Analog radio transmitter B08FIX

controlfor crane

High-speed CPU, response time ≤20ms; smart key, perfect backup working ability; support multiple signal input. Radio： Frequency range：400-470MHz Transmission rate: 9600bit/s Transmitted power: ≤20mW Frequency tolerance: 4ppm Adjacent channel rejection: ＞50dB Modulation: GFSK(Gauss frequency shift key) Channel spacing: 25KHz Receiving sensitivity: －115dBm Check mode: CRC-1TM (cyclic redundancy) + Hamming code (≥4) Response time: ≤20ms Physical Data： Transmitter weight:2kg Transmitter size: 298mm x 206mm x75mm (length x width x height) Transmitter shell material: high-strength engineering plastics Receiver weight: 2kg Receiver overall dimensions: 298mm x 206mm x 75mm(length x width x height) Receiver installation dimensions: 184mm x 88mm Receiver installation hole diameter: Φ6mm Receiver housing material: high-strength engineering plastics Operating temperature: －25℃-+70℃ Operating humidity range: 0-97%RH Safety Standard： JB/T8437-2015 EN ISO EN ISO 13849 Class D Radio Transmission Equipment Type Approval Certificate (State Radio Regulatory Commission of the People’s Republic of China) Crane remote control device safety qualification certificate (Liao'an Institute) Processing Units： Real-time performance: Implement control technology Frequency control: PLL(phase-lock loop) Dedicated address code: 32bit>4,200,000,000 Remote control distance: ＞100m Transmitter type: 10 switching quantity + 2 analog quantity
