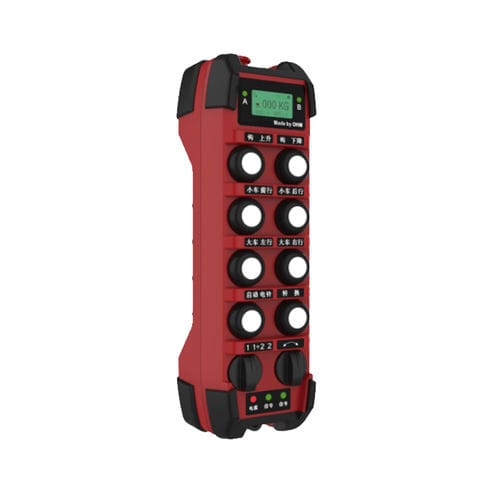

Analog radio transmitter D16

CAN busIP65

The transmitter adopts independent patented 7mm stroke analog button, which can be as fast or slow as you want; The launcher is two-color injection molding, shock-resistant and anti-drop; high protection level, facing rain and oil, optional automatic shutdown when dropped; 5200mAh large-capacity lithium battery, which can work for more than 60 hours on a single charge; The LED display is visible in the sun. Working temperature: -25℃—70℃ Working humidity: ≤97%RH Communication distance: ≥100m Transmitter： Dimensions: 235mm x 65mm x 59.5mm Product weight: transmitter 600g (including battery) Shell material: high-strength engineering plastics Protection level: IP65 Communication method: real-time communication Transmit frequency: 400-470MHz Transmitting power: ≤10mW Operation form: button + knob Number of buttons: ≤10 Working power supply: 3.7V (5200mAh lithium battery) Standby current: ≤80mA Status display: LCD screen + LED Antenna: Built-in Analog key stroke: 7mm Receiver: Dimensions: 162mm x 87mm x 41mm Product weight: 300g Shell material: high-strength engineering plastics Protection level: IP65 Working power supply: 6-30VDC Rated power: ≤6W Status display: LED indicator Antenna: external Output mode: CANBUS
