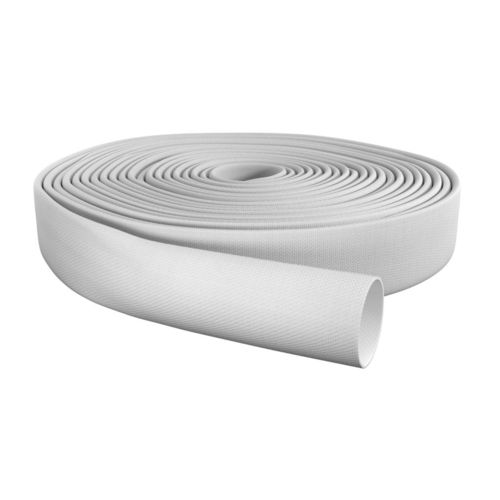

Water hose OSW COMPETITION
polyurethanepolyestersynthetic yarn

Water hose - OSW COMPETITION - Ohrdrufer SchlauchWeberei Eschbach GmbH - polyurethane / polyester / synthetic yarn
Water hose - OSW COMPETITION - Ohrdrufer SchlauchWeberei Eschbach GmbH - polyurethane / polyester / synthetic yarn
Add to favorites
Compare this product


Characteristics

Use
for water
Material
synthetic yarn, polyester, polyurethane
Applications
fire
Norms
DIN
Other characteristics
flexible, abrasion-resistant, smooth, lightweight, UV-resistant, double-layer, seamless
Inner diameter

42 mm, 52 mm, 75 mm
(1.654 in, 2.047 in, 2.953 in)

Outer diameter

44.7 mm, 54.7 mm, 77.9 mm
(1.76 in, 2.154 in, 3.067 in)

Pressure

16 bar
(232.06 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -35 °C
(-31 °F)

Description

excellent as a competitive sport hose (super-light weight and small roll diameter) very low weight to relieve fire fighting forces very good kink radius for high flexibility low friction/pressure loss due to smooth PU film high-quality PU film is extremly resistant to aging, ozone and UV radiation root resistant, low maintenance Inside seamless polyurethane film, produced by the two-layer method Outside jacket of 100 % high tenacity synthetic polyester yarn, circular-woven twill weave, warp and weft threads multiple twisteds individual printing possible (e.g. company logo) hose can be connected with national and international couplings binding: wire, smartFIT, clamps, Iconos, Innotrade, press sleeves etc. impact and abrasion cuffs over the binding (smooth or conical) repair or sliding sleeves in different designs innovations: smartFIT, smartPROTECT, RFID chip, edge gliders on customer request: double rolled, untwisted, with factory test report according to DIN 14811:2008 class 1 Approval or test certificates will send on request.
