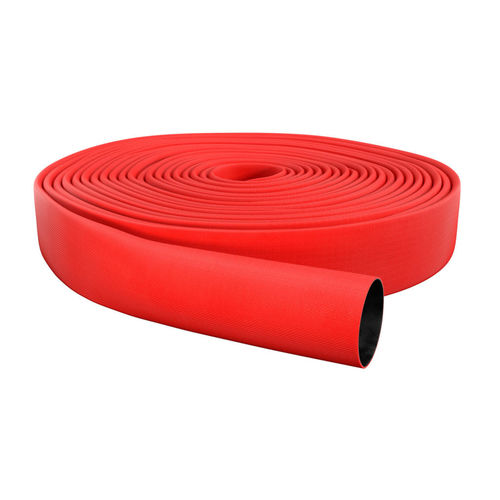

Water hose OSW FIRE PU
EPDMsynthetic rubberfire

Water hose - OSW FIRE PU - Ohrdrufer SchlauchWeberei Eschbach GmbH - EPDM / synthetic rubber / fire
Water hose - OSW FIRE PU - Ohrdrufer SchlauchWeberei Eschbach GmbH - EPDM / synthetic rubber / fire
Add to favorites
Compare this product


Characteristics

Use
for water
Material
synthetic rubber, EPDM
Applications
fire
Other characteristics
flexible, abrasion-resistant, smooth, UV-resistant, standard
Inner diameter

Max.: 110 mm
(4.331 in)

Min.: 25 mm
(0.984 in)

Outer diameter

Max.: 114 mm
(4.488 in)

Min.: 28.1 mm
(1.106 in)

Pressure

12 bar, 16 bar
(174.045 psi, 232.06 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

outside coating offers increased abrasion resistance, acts as a mechanical protection of the jacket and preventswater absorption very low weight to relieve fire fighting forces very good kink radius for high flexibility low friction/pressure loss due to smooth EPDM-rubberlined high-quality EPDM-rubberlining is extremly resistant to aging, ozone and UV radiation root resistant, low maintenance also suitable for sea water, hot Inside high-quality, very light synthetic rubber on the basis of EPDM, jacket of 100 % high tenacity synthetic polyester yarn, circular-woven twill weave, warp and weft threads multiple twisted Outside coloured polyurethan coating (standard colour: red, other on request) individual printing possible (e.g. company logo) can be connected with national and international couplings binding: wire, smartFIT, clamps, Iconos, Innotrade, press sleeves etc. impact and abrasion cuffs over the binding (smooth or conical) repair or sliding sleeves in different designs innovations: smartFIT, smartPROTECT, RFID chip, edge gliders on customer request: double rolled, untwisted, with factory test report
