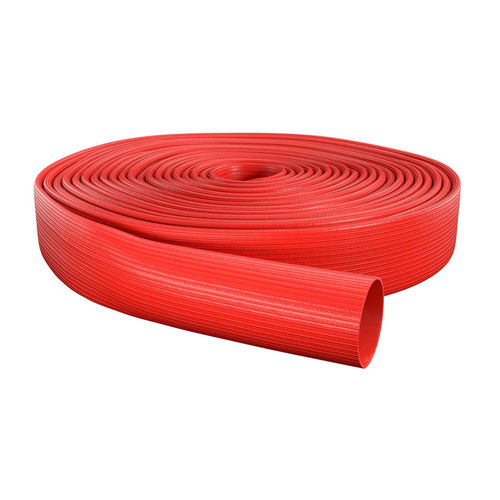

Hot water hose OSW UNIDUR
for seawaterfor chemical productsfor steam

Hot water hose - OSW UNIDUR - Ohrdrufer SchlauchWeberei Eschbach GmbH - for seawater / for chemical products / for steam
Hot water hose - OSW UNIDUR - Ohrdrufer SchlauchWeberei Eschbach GmbH - for seawater / for chemical products / for steam
Add to favorites
Compare this product


Characteristics

Use
for hot water, for seawater, for chemical products, for steam
Material
rubber, nitrile, PVC
Other characteristics
abrasion-resistant, UV-resistant, with smooth inner surface
Inner diameter

Min.: 19 mm
(0.748 in)

Max.: 254 mm
(10 in)

Outer diameter

Min.: 23.4 mm
(0.921 in)

Max.: 261 mm
(10.276 in)

Pressure

10 bar, 12 bar, 16 bar
(145.038 psi, 174.045 psi, 232.06 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 100 °C
(212 °F)

Description

high abrasion resistance and durability by longitudinal ribs by trouble with a damage of the cover an easily repair is possible very good kink radius for high flexibility low friction/pressure loss due to very smooth inside rubberlined high-quality EPDM-rubberlining is extremly resistant to aging, ozone and UV radiation root resistant, low maintenance also suitable for sea water, hot water, water steam and many other chemicals Inside very smooth high-quality Nitrile/PVC rubberlining. jacket of 100 % high tenacity synthetic polyester yarn, circular-woven twill weave, warp and weft threads multiple twisted, embedded in a rubber compound, optimum protection of the jacket Outside high-quality Nitrile/PVC rubberlining with longitudinal ribs individual printing possible (e.g. company logo) can be connected with national and international couplings binding: wire, smartFIT, clamps, Iconos, Innotrade, press sleeves etc. impact and abrasion cuffs over the binding (smooth or conical) repair or sliding sleeves in different designs innovations: smartFIT, smartPROTECT, RFID chip, edge gliders on customer request: double rolled, untwisted, with factory test report

Catalogs

OSW UNIDUR
OSW UNIDUR
2 Pages
