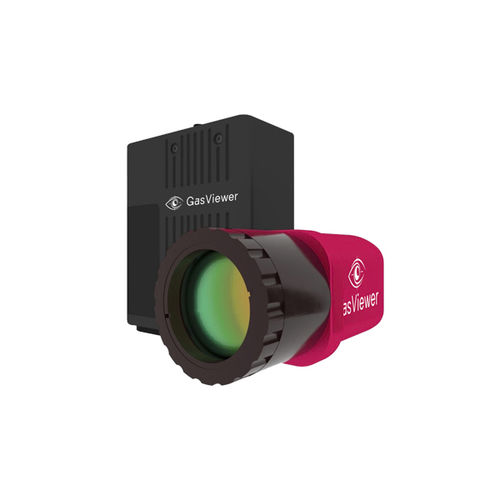

Oil and gas camera GV-P-714

for hazardous areasdigitalfor gas leak detection

To see gas leaks invisible to the naked eyes. For fugitive emissions detection, localization, visualization and quantification (optional). Gases appear in real time as fumes on the attached windows tablet screen. Approved as Smart LDAR Equipment in EPA. method 21 and EN15446 regulations. Safe for hazardous areas. ACCURACY Uncooled detector technology allows to find leaks as low as 6,3 gr/hr for methanol at 2 m distance. CAMERA MODES • Color • Infra-red • Enhanced gas detection • Thermography RECORDING Record your leaks picture or video on the attached tablet 256 GB hard drive. Then, download the videos through Wifi to your computer. BUILT-IN FUNCTIONS • Thermography • Colorization of the leaking gas • Estimation of the leaking rate SAFETY CERTIFICATIONS • Camera : Atex II B 3G Ex NA II B Gc • Tablet : Atex II 3G Ex ic IIC T4 Gc • IP 65 for the camera and tablet DETECTED GASES CH4, SO2 and VOC’s , NH3, SF6, Methanol, cooling gases (CFC, HCFC)…
