Stainless steel conveyor M600 Seriesmodular belttable top chainhorizontal
Add to favorites
Compare this product
Characteristics
- Technology
- modular belt, table top chain
- Form
- horizontal, curved
- Function
- transport
- Drive mechanism
- manual
- Transported product
- bulk products
- Sector
- for the food industry
- Other characteristics
- stainless steel
Description

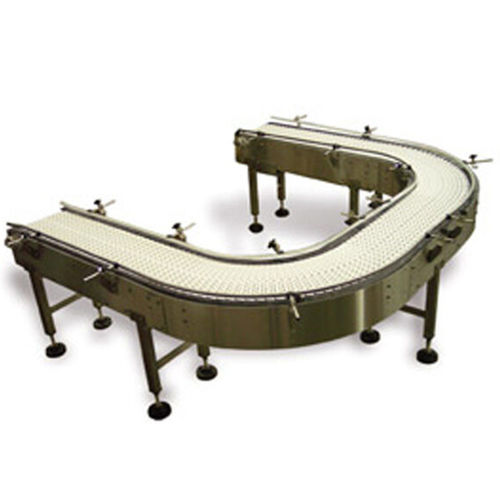

M600 Series Conveyors
M-600 Series: Stainless steel Table Top Conveyors.
12 gauge brush finish stainless steel frames.
4.1" diameter acetel pulleys with 1" stainless steel shafts.
USDA/FDA approved acetel table top belts.
1" bore flange heavy duty washdown bearings.
2" stainless steel legs with leveling pads.
Washdown 56-C Face AC motor gearbox, 1/4 HP and up.
Single or three-phase.
Manual motor starter with plug and overload protection.
Fixed speed.
TECHNICAL SPECIFICATIONS:
Belt height: - 24 in. (min)
42 ft. (max)
Belt width: - 6 in. (min)
72 in. (max)
Length: - 3 ft. (min)
100ft. (max)
Overall width: - 7 in. more than belt.
Curves: - 45, 90, and 180 degrees.
