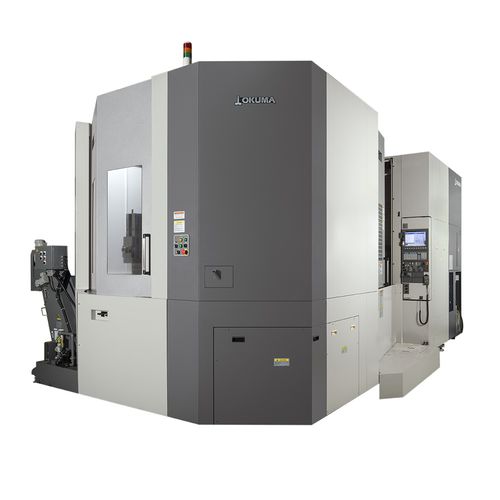

3-axis CNC machining center MB-10000Hhorizontal60 tools40 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Number of tool stations
- 60 tools, 40 tools, 400 tools
- Associated functions
- drilling
- X travel
1,400 mm
(55.12 in)- Y travel
1,250 mm
(49.21 in)- Z travel
1,250 mm
(49.21 in)- Rotational speed
Max.: 12,000 rpm
(75,398 rad.min-1)Min.: 50 rpm
(314 rad.min-1)- Power
22 kW, 26 kW, 30 kW, 37 kW
(29.91 hp, 35.35 hp, 40.79 hp, 50.31 hp)- Work feed X-axis
50,000 mm/min
(33 in/s)- Work feed Y-axis
50,000 mm/min
(33 in/s)- Work feed Z-axis
50,000 mm/min
(33 in/s)
Description
Our Okuma MB-10000H is a 1,000mm (39.4”) square pallet sized horizontal CNC machining center. Its core features include standard double ball-screw drive, ball-screw cooling, box-in-box construction, center trough chip handling, thermal compensation (included for all spindle choices), and much faster motions for a machine in this size class. All elements combine to produce the most efficient and convenient horizontal machining center available for milling, boring, drilling, and tapping. This HMC is a solid production engine for basic through FMS applications.
