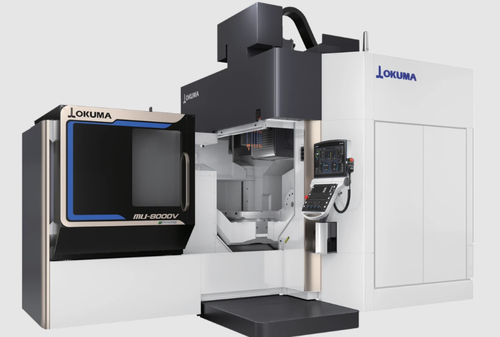

5-axis CNC machining center MU-8000V
verticaldouble-column32 tools

5-axis CNC machining center
5-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
double-column
Number of tool stations
32 tools, 48 tools, 64 tools
Associated functions
cutting
Other characteristics
high-productivity, high-rigidity
Rotational speed

10,000 rpm
(62,832 rad.min-1)

Power

7.5 kW, 11 kW
(10.2 hp, 14.96 hp)

Work feed X-axis

50,000 mm/min
(33 in/s)

Work feed Y-axis

50,000 mm/min
(33 in/s)

Work feed Z-axis

50,000 mm/min
(33 in/s)

Description

Our MU-8000V 5-axis vertical machining center achieves high efficiency and high productivity in 5-axis, multi-sided machining. This CNC vertical machining center's highly rigid and accurate double-column structure and low center of gravity in workpiece movement (trunnion table) enable both heavy-duty cutting and high-speed finishing. The high-speed, high-accuracy trunnion table means fast, accurate positioning for simultaneous 5-axis cutting. The MU-8000V can easily be adapted for use with APC, multiple ATC, automation, or FMS without compromising operability because this expansion takes place at the back of the machine. Built on Okuma’s Thermo-Friendly structure, this machine will perform consistently from the first part to the last, regardless of warm-up time or ambient temperature. The smaller MU-6300V of this series was honored in Nikkan Kogyo Shimbun’s (Business & Technology Daily News) 55th (2012) Best 10 New Product Awards.
