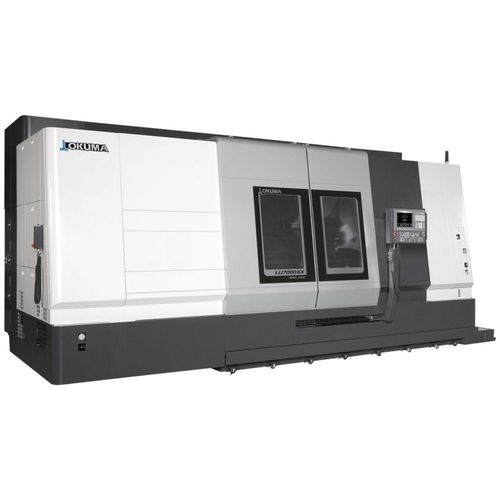

CNC lathe LU7000 EXhorizontalheavy-dutyfor large parts
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Applications
- heavy-duty, for large parts
- Performance
- powerful, precision
- Diameter
900 mm
(35.43 in)- Spindle speed
Min.: 5 rpm
(31.416 rad.min-1)Max.: 1,500 rpm
(9,424.778 rad.min-1)- Maximum cutting length
2,000 mm
(79 in)- Rapids on X
20,000 mm/min
(13 in/s)- Rapids on Z
20,000 mm/min
(13 in/s)- Nominal power
37 kW, 45 kW, 55 kW, 60 kW, 75 kW
(50.3 hp, 61.2 hp, 74.8 hp, 81.6 hp, 102 hp)
Description
The LU7000 EX is a powerful, 2-saddle CNC lathe with a wide range of spindle motor specifications to easily handle manufacturing of large parts. The LU7000 EX features a large two meter bed and high power spindles (45 kW, 55 kW, 75 kW) that provide stable heavy-duty cutting with full utilization of upper and lower turrets. Additional machining accuracy is achieved with the Thermo-Friendly Concept, which compensates for temperature changes that occur during manufacturing. Ceiling and front door shower coolant allow for complete chip removal and improved visibility. Precision threading with minimal chatter is possible with Okuma’s Machining Navi T-g (threading)
