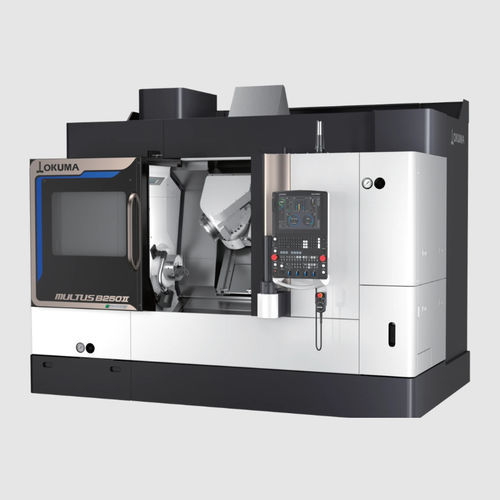

CNC milling-turning center MULTUS B250II

horizontalvertical3-axis

Our MULTUS B250II, equipped with B-axis head, is the ultimate fusion of turn-mill operations, with lathe, vertical, or horizontal machining center and material-handling operations consolidated into one 6- to 8-inch chuck class machine. This multitasking CNC machine performs process-intensive machining for shorter deliveries while making more effective use of floor space. With fewer setups, work in process is drastically reduced and machine utilization is greatly increased. The MULTUS B250II has a 225° B-axis range with 12,000 rpm H1-milling spindle (opt. 20,000 rpm) with dual function (L/M). The H-1 dual function spindle head utilizes CAPTO-C6 tooling and has a 16.2/10.8 hp PREX milling motor spindle. The base offering has 40-tool ATC, with a 60-tool ATC available. The H1-turret has a 0.001-degree B-axis and compound-motion Y-axis for machining flexibility. The main spindle is equipped with a full-contouring C-axis. The MULTUS B250II can be enhanced with automation including ARMROID built-in robot. Thermo-Friendly Construction assures high accuracy, even in the most complex applications, and the optional sub-spindle version allows a part to be handed from one spindle to the other. The MULTUS B250II is equipped with our OSP-P300 control that is designed with ease of operation in mind. With single-mode operation and superior graphics, novice operators, as well as professional machinists, will experience a smoother, more effective way of producing parts.
