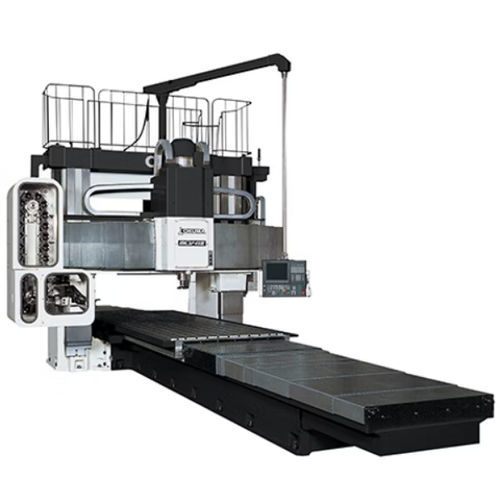

5-axis CNC machining center MCV-AIIverticaldouble-column24 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Number of tool stations
- 24 tools, 50 tools
- Associated functions
- cutting
- Applications
- heavy-duty, for large workpieces
- Other characteristics
- high-speed, high-power, high-precision, high-rigidity
- X travel
2,000 mm, 3,000 mm, 4,000 mm, 5,000 mm
(78.74 in, 118.11 in, 157.48 in, 196.85 in)- Rotational speed
4,000 rpm, 6,000 rpm
(25,133 rad.min-1, 37,699 rad.min-1)- Power
15 kW, 18.5 kW, 22 kW
(20.39 hp, 25.15 hp, 29.91 hp)- Work feed X-axis
20,000 mm/min
(13 in/s)- Work feed Y-axis
20,000 mm/min
(13 in/s)- Work feed Z-axis
15,000 mm/min
(10 in/s)
Description
Our MCV-AII delivers smooth performance with the speed and power you expect from an Okuma double column machining center. This machine is perfect for streamlined machining of medium to large parts, from heavy-duty cutting to fast finishing. The direct (gearless) spindle drive means less noise for a better work environment and less vibration for longer tool life. Standard spindle cooler delivers consistently high accuracies while the solid double-column construction ensures flawless precision and rigidity.
Built-in software - Ease of use and reduced setup time
Quill Spindle Design - enhanced accessibility
Superior Machine Structure - unrivaled accuracy
VIDEO
Catalogs
MCV-AII Series
1 Pages
