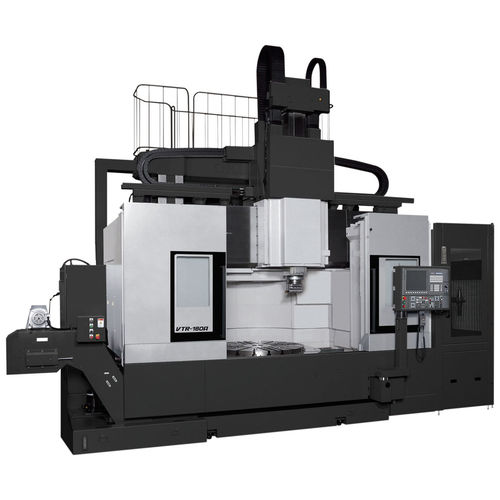

CNC turning center VTR-160Avertical2-axisrigid
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Structure
- rigid, double-column
- Applications
- heavy-duty
- Performance
- high-capacity
- Other characteristics
- multi-function
- Diameter
1,600 mm
(62.99 in)- Spindle speed
Max.: 400 rpm
(2,513.274 rad.min-1)Min.: 1 rpm
(6.283 rad.min-1)- Maximum cutting length
1,200 mm, 1,600 mm
(47 in, 63 in)- Axe Z
900 mm, 1,250 mm
(35 in, 49 in)- Nominal power
37 kW, 45 kW, 60 kW, 75 kW
(50.3 hp, 61.2 hp, 81.6 hp, 102 hp)- Maximum torque
14,000 Nm, 17,100 Nm, 22,800 Nm, 28,500 Nm
(10,326 ft.lb, 12,612 ft.lb, 16,816 ft.lb, 21,021 ft.lb)
Description
Our VTR-160A double column turning center provides large-capacity machining with high rigidity and thermal stability for close-tolerance machining. This heavy-duty, large-capacity, multifunction turning center delivers accuracy and stability derived from our double-column experience and innovation in rigidity and thermal stability. The VTR-160A has a generous work envelope, with a swing over the bed that is among the best in its class, providing the flexibility to handle a wide range of workpieces.
