CNC lathe LAW-2S
horizontal4-axisA2-8

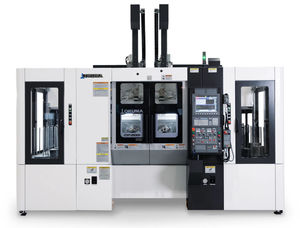

CNC lathe - LAW-2S - OKUMA - horizontal / 4-axis / A2-8
CNC lathe - LAW-2S - OKUMA - horizontal / 4-axis / A2-8
CNC lathe - LAW-2S - OKUMA - horizontal / 4-axis / A2-8 - image - 2
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
4-axis
Spindle mount
A2-8
Number of tool stations
10 tools
Applications
for wheels
Performance
powerful
Diameter

630 mm
(24.8 in)

Spindle speed

Min.: 200 rpm
(1,256.637 rad.min-1)

Max.: 3,000 rpm
(18,849.556 rad.min-1)

Rapids on X

15,000 mm/min, 20,000 mm/min
(10 in/s, 13 in/s)

Rapids on Z

15,000 mm/min, 20,000 mm/min
(10 in/s, 13 in/s)

Nominal power

45 kW, 55 kW
(61.2 hp, 74.8 hp)

Description

Now in its second generation, our LAW-2S is a proven leader in the wheel industry. With its unique combination of simultaneous 4-axis turning to reduce cycle time and the gold standard Okuma reliability, it’s easy to see why there are more than 2500 LAW-2S machines currently active in production lines throughout North America. A 20-inch turning diameter, powerful spindle, and 10 available tools make this a true performer for all manner of wheel finishes—from mirrors to spinners, and myriad consumer upgrades. To top it all off, the LAW-2S offers efficient chip handling and a robot- and line-friendly design to accommodate any production process configuration.
