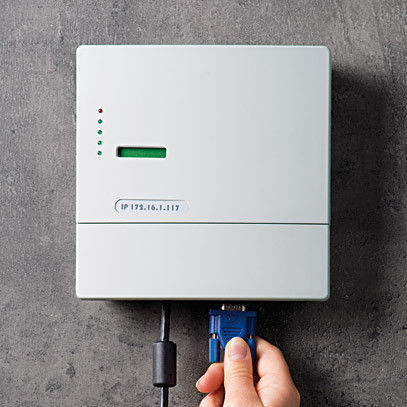

Electronic equipment enclosure NET-BOX series
wall-mountrectangularPC

Electronic equipment enclosure - NET-BOX series - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - wall-mount / rectangular / PC
Electronic equipment enclosure - NET-BOX series - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - wall-mount / rectangular / PC
Electronic equipment enclosure - NET-BOX series - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - wall-mount / rectangular / PC - image - 2
Electronic equipment enclosure - NET-BOX series - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - wall-mount / rectangular / PC - image - 3
Electronic equipment enclosure - NET-BOX series - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - wall-mount / rectangular / PC - image - 4
Electronic equipment enclosure - NET-BOX series - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - wall-mount / rectangular / PC - image - 5
Electronic equipment enclosure - NET-BOX series - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - wall-mount / rectangular / PC - image - 6
Electronic equipment enclosure - NET-BOX series - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - wall-mount / rectangular / PC - image - 7
Electronic equipment enclosure - NET-BOX series - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - wall-mount / rectangular / PC - image - 8
Add to favorites
Compare this product


Characteristics

Construction
wall-mount
Configuration
rectangular
Material
PC, ASA
Application
electronic equipment, network, for controllers, for connectors
Protection level
flame-retardant, IP65, IP40
Other characteristics
cast
Width

Max.: 220 mm
(8.7 in)

Min.: 140 mm
(5.5 in)

Height

Max.: 51 mm
(2 in)

Min.: 47 mm
(1.9 in)

Depth

Max.: 220 mm
(8.66 in)

Min.: 140 mm
(5.51 in)

Description

Product advantages: ◾three sizes with plenty of room for electronics and interfaces ◾the connectors and cables are hidden under the front lid ◾the cases are moulded in flame retardant material and can be sealed to IP 65 for outdoor applications ◾simple three part assembly - bottom part, front cover and front lid; there are no visible screws on the front, just two on the underside of the lid ◾screw pillars are provided in the bottom part for mounting PCBs and assemblies ◾optional infill covers close the underside opening and can be used for fitting additional PCBs or assemblies ◾three point wall mounting system - no need to open the main electronics section, only the front lid has be refitted after installation ◾supplied with anti-tamper Torx T10 assembly screws ◾NET-BOX cases can also be used as desktop units, accessory non-slip feet are available
