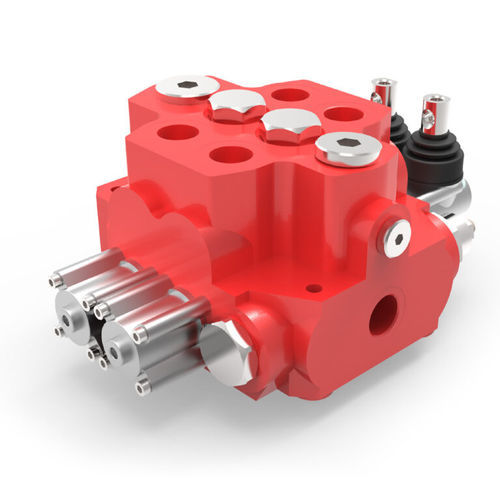

Spool hydraulic directional control valve AMI 700 series

electro-hydraulicmonobloc

Manufactured in 1 to 5 sections - MAX return backpressure - 50 bar Standard PRESSURE RELIEF valve, may be set - da 10 a 220 bar Single-acting check valve for each section Negative spool overlapping - Reversing spool for right-hand or left-hand inlet Preset for CARRY-OVER - Working temperature - min.-30°C ÷ max. 80°C MAX spool leakage at 100 bar (Temp. 50°C Visc. 27 CST) - 21 ml/min
