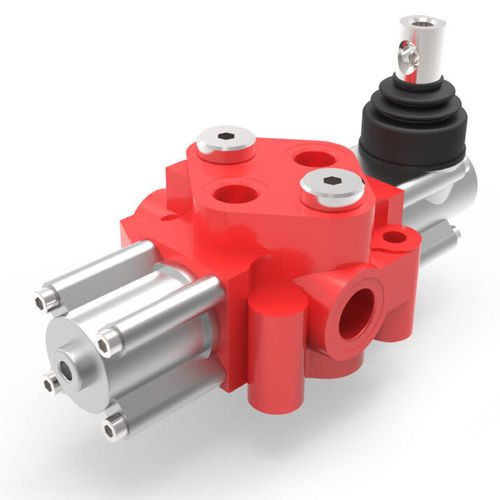

Spool hydraulic directional control valve AMI 21R
electro-hydraulicmonobloc

Spool hydraulic directional control valve - AMI 21R - OLEODINAMICA AMI Srl - electro-hydraulic / monobloc
Spool hydraulic directional control valve - AMI 21R - OLEODINAMICA AMI Srl - electro-hydraulic / monobloc
Spool hydraulic directional control valve - AMI 21R - OLEODINAMICA AMI Srl - electro-hydraulic / monobloc - image - 2
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
electro-hydraulic
Other characteristics
monobloc
Operating pressure

220 bar, 350 bar
(3,190.83 psi, 5,076.32 psi)

Flow rate

35 l/min, 45 l/min
(9.2 us gal/min, 11.9 us gal/min)

Description

Manufactured in one section only - MAX return backpressure - 80 bar Standard PRESSURE RELIEF valve, may be set (on request may be set from 10 to 250 bar) - da 60 a 300 bar Single-acting check valve on inlet Negative spool overlapping - Reversing spool for right-hand or left-hand inlet except AB2 spool Preset for CARRY-OVER - Working temperature - min.-30°C ÷ max. 80°C MAX spool leakage at 100 bar (Temp. 50°C Visc. 27 CST) - 18 ml/min Weight - 3,400 kg
