Food processing system

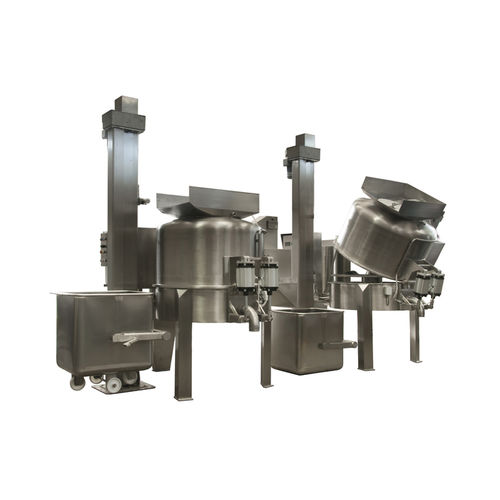

The IN-LINE system is for the processing of bovine stomachs, comprising of two centrifuges, a washer and a refiner. The unit includes two fully automatic centrifuge machines each with a lifter or with a lifter for the P machine where it unloads directly into the R machine. Specifications: • The machines are made of stainless steel AISI-304, including the electrical cabinet. • The machines have a matt (sand blasted) finish • Loading with a bin lifter, the O&C model S series • Pneumatic Loading Lid and Unloading Door • Pneumatic pistons to open upper chamber • A fully integrated electrical control panel with PLC Siemens S7, touch screen and its dedicated software • All processing phase are automatically controlled by the software: loading of material, rotation of the rotating plate, water, pneumatic movements of the doors. The PLC software also manages the adjustment of the parameters of the inverter for the rotation speed of the plate, the electronic mixing valve to control the temperature of the water and the communication between the two machines • Up to ninety-nine pre- set programs, with customizable parameters • Possibility of remote production control and data base and internet assistance • The line is supplied complete, requiring only installing the final connections • On request we can install systems for water recovery re-cycling system or waste water filtration system all integrated with the existing software
