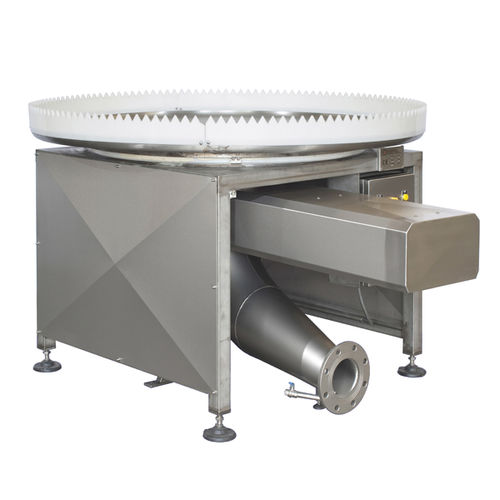

Electric rotary table TR series

horizontalfor the food industry

The table is suitable to transport and individually segregate the pig intestinal package for the separation of the small intestine and the disposal of the large intestine Constructed entirely of stainless steel, are constituted by a bearing structure with adjustable feet, on which rotates a circular conical table top, rotating on plastic guides and motorized reducer via coaxial. The table top is equipped with toothed edge of made of food grade plastic and is equipped with a central hole for the discharge of waste in which our pneumatic conveyor can be installed. Unless otherwise requested, comes complete with electrical panel wired with stainless steel cabinet, requiring only installing the final connections to the main power Technical Characteristics: 400v, 3phase, 50hz, 0.5Kw
