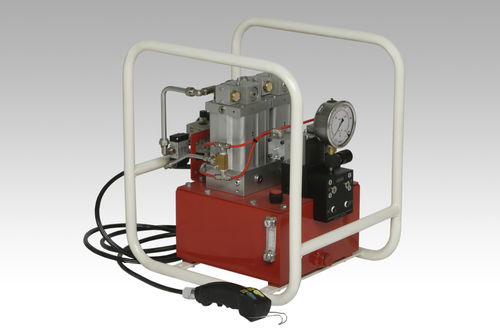

Hydraulic piston pump P2870 series

air-drivendouble-acting

PNEUMATIC TWIN-ENGINE This pneumohydraulic pump twin-engine low- high pressure P2870 provides a high ow rate of progress on the rst stage BP (15 bar) for rapid advancement of the cylinder and high pressure HP (adjustable up to 700 bar). Made almost entirely of aluminium to reduce weight, the compact size, the 10 L tank and the protective frame make a practical and ef cient tool in all working conditions. Available in different con gurations: with manual lever distributor with remote pendant or by hydraulic solenoid distributor are suitable for control single or double-acting cylinders. The relief valve on the line A adjustable up to 700 and the control oil pressure gauge double reading scale allows an easy and accurate use. The return line B is set at 15 bar but it’s adjustable up to 350 bar.
