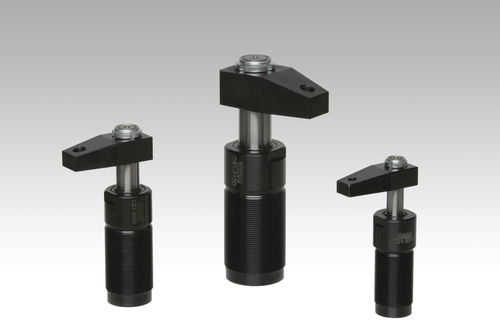

Hydraulic clamp 300 series

swingthreaded body

This product series consists of high quality swing clamps that are particularly useful when it comes to applications that involve the insertion or removal of the piece during machining. In addition to this, there are two phases for the clamping cycle, a clockwise and an anti-clockwise rotation one, with a partial descent of the piston, as well as a vertical downward stroke for the clamping effect. The single-acting models are advantageous when the pressure is released, with the clamping arm automatically returning to its initial position using an internal spring. In the case of double-acting models, the return is ensured by a second hydraulic line The clamping arm fixing block and the long internal piston guide come in treated case-hardened steel, while an unlimited number of cycle is guaranteed at a maximum pressure of 400 bar.
