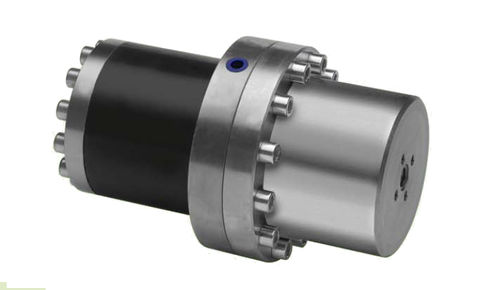

Hydraulic pressure multiplier M854 series

oil-oil

The M854, which is manufactured by Olmerc, is a hydraulically controlled, double-acting oil-to-oil intensifier that is suitable to use in producing static or pulse pressures that range up to 4000 bar. The unit has a pressure ratio that ranges from 1:3 up to 1:17.5 and is integrated with a chromed H.P. piston together with special seals that ensures a large amount of duty cycles. It has a maximum inlet pressure that ranges from 20 up to 350 bar with a maximum inlet flow of 110 l/min.
