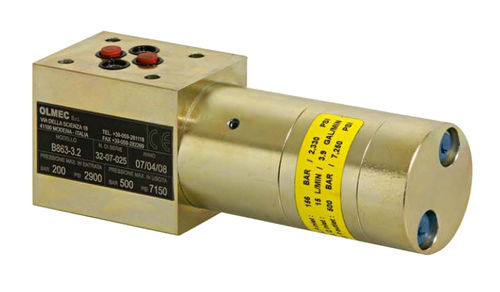

Hydraulic pressure intensifier B863 seriesoil-oil
Add to favorites
Compare this product
Characteristics
- Options
- hydraulic, oil-oil
- Pressure
Max.: 500 bar
(7,252 psi)Min.: 0 bar
(0 psi)- Flow rate
Max.: 12 l/min
(3 us gal/min)Min.: 8 l/min
(2 us gal/min)
Description
B863 is an alternate-cycle oil-oil pressure intensifier delivered as a version of the more popular B862 unit, designed for use with manifold systems of type Cetop NH6/D03. The pressure intensifiers in this series are delivered in a compact design, with a weight of only 2.5kg. The piloted dump valve attached to this model, along with the operating pressure of 500bar, complete the list of features, while the input pressure is varied, helping obtained the required output pressure.
Finally, this product is available with nine intensification ratios and is compatible with various industry applications.
