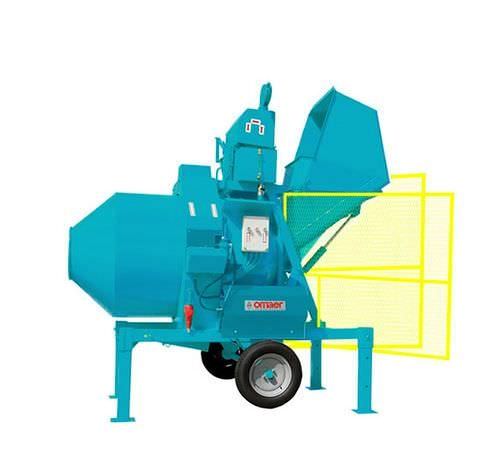

Diesel concrete mixer C750i 2R

electricmobilereversing drum

Mod. C750i 2R Reversing drum mixer Total capacity of tank lt. 750 Capacity of mixing (about) lt. 460 Water tank capacity lt. 80 Concrete hour production m³ 14 - 16 Revolutions per minute tank rpm 22 Power electric motor 380V / 50Hz HP 7,5 - kW 5,6 Power diesel motor HP 19 - kW 14 Lenght (about) mm. 2900 Width (about) mm. 2000 Height (about) (bucket raised) mm. 2950 Weight (electric motor without shovel) Kg. 1100 Weight (electric motor with shovel) Kg. 1184 Weight (diesel motor without shovel) Kg. 1210 Scraping Shovel Power electric motor 380V / 50Hz HP 2,5 - Kw 1,85 Traction speed m/sec. 0,72 Traction capacity Kg. 257 Lenght Steel cable m 12 1) Lever bucket 2) Piston bucket 3) Water meter Data and sizes are not binding and the producer reserves itself to modify the machines without giving notice.
