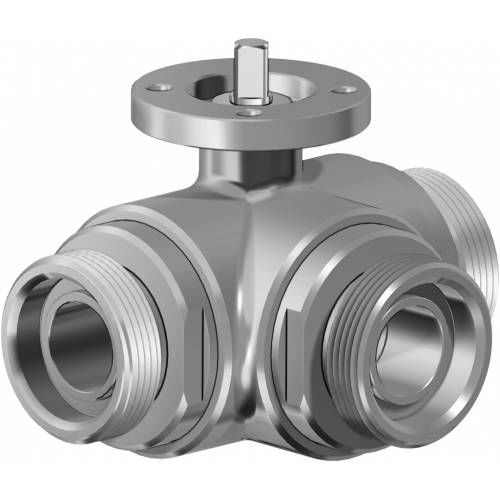

Ball valve ITEM 46 seriesleverfor controlfor liquid food products and beverages
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Media
- for liquid food products and beverages
- Body
- male, stainless steel, graphite
- Applications
- for oil industry applications, industrial, for the chemical industry, for the food industry, for the pharmaceutical industry, for automobiles, hygienic, for machine tools, power line, for the gas industry, for the paper industry, for water treatment, for the mining industry, for marine applications, for shipbuilding, turbine
- Number of channels
- 3-way
- Associated function
- discharge
- Other characteristics
- ISO, ATEX
- DN
Min.: 10 mm
(0.394 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 16 bar
(232.1 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 150 °C
(302 °F)
Description
Category Other stainless steel ball valves
3 way 4 seals, full-bore stainless steel ball valve, “T” or “L” port, DIN 11851 threaded-ends
ITEM 464
Valve "T" port
ITEM 465
Valve "L" port
GENERAL FEATURES:
• The valve is manufactured in 316L stainless steel and suggested for particular hygienic conditions (food industry applications).
• Valve with 4 ball seats. Inlet from any of the 3 ends. It can also shut of the flow.
• Ends: as per DIN 11851 specifications.
• Working pressure: see table.
• Fluid range: food industry.
• Head of the valve as per ISO 5211 specifications.
• The manual version (with lever) doesn't have the ISO 5211 top work and its therefore not possible to mount on it any kind of actuators
ON REQUEST:
• Connection: SMS - MACON - DIN male.
• Seals made of:
PTFE glass filled,
PTFE with carbon graphite,
High-molecular weight polyethylene.
• For other applications, please contact our sales department.
CERTIFICATIONS:
• ATEX version in conformity with European Directive 2014/34/EU.
• ATEX certificate on request.
